UNS S32750 Super Duplex Stainless Steel Wire Mesh

Super Duplex Stainless Steel Wire Mesh S32750 (F53/SAF2507) alloy is super duplex stainless steel made up of 250%Cr 40% Mo and 7% Ni and N. This steel is mainly used in chemical petrochemical and marine equipment which required special in tension and corrosion resistance.

Application of UNS S32750 Super Duplex Stainless Steel Wire Mesh

S32750 Super duplex stainless steel wire mesh can be widely used in oil and gad industry equipment offshore platform all kinds of heat exchangers water treatment equipment water circulation system chemical industry pulp container high corrosion resistance parts power plant equipment and absorption tower device etc.

Features of UNS S32750 Super Duplex Stainless Steel Wire Mesh
- S32750 is with strong ability to resist chloride corrosion higher heat conductivity and lower thermal expansion corrosion. High chromium molybdenum and nitrogen content makes it has strong ability to resist pitting corrosion crevice corrosion and general corrosion. Compared with 2205 S32750 is with corrosion resistance ability suited to extreme corrosion environment. Its impact strength is high but S32750 alloy is not suitable for environment with temperature higher than 299℃ then its toughness will be reduced.
Technical Details
- Woven Technique: Plain Weave
- Mesh Count: 2-200MESH

Specification of UNS S32750 Super Duplex Stainless Steel Wire Mesh

UNS S32750(SAF2507) Super Duplex Stainless Steel Wire Mesh
Mesh Count	Wire diameter(mm)	Aperture(mm)	Max width(m)
10	0.60	1.94	1.60
20	0.40	0.87	1.60
30	0.30	0.55	1.60
40	0.23	0.40	1.60
50	0.20	0.31	1.60
60	0.15	0.27	1.60
70	0.12	0.24	1.60
80	0.13	0.19	1.60
90	0.12	0.16	1.60
100	0.10	0.15	1.60
120	0.09	0.12	1.60
150	0.063	0.11	1.60
180	0.053	0.01	1.60
200	0.053	0.07	1.60

Note: Special size and specifications can be made according to customers requires.

Chemical Composition of UNS S32750 Super Duplex Stainless Steel Wire Mesh

Steel Grade	C	Mn	Si	S	P	Cr	Ni	Mo	Cu	N
UNS S32750SAF2507	≤0.03	≤1.20	≤0.80	≤0.02	≤0.035	24.0-26.0	6.0-8.0	3.0-5.0	≤0.5	0.2

Factory Production System

Document
1. Commercial Invoice including HS Code
2. Packing List including number of boxes,net weight,gross weight,Marks & Numbers
3. Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
4. Material Test Certificates as per EN 10204 3.1, EN 10204 3.2
5. Test Certificates certifying NACE MR0103, NACE MR0175
Testings
1. Positive Material Identification – PMI Testing
2. Chemical Analysis – Spectro Analysis
3. Mechanical Testing Such as Tensile, Elongation, Reduction of Area
4. Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
5. Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
Packaging

The different ways in which our products are packed are:
1. Shrink-wrapped
2. Wooden Boxes
3. Wooden Pallets
4. Wooden Crates
5. Carton boxes
Marking

We mark Duplex 2205 as needed with the most suitable & visible marking techniques. Standard Marking System :-
1. Manufacturer’s Name or Trademark
2. Material Designation
3. Size Designation
4. Rating Designation
5. Melt Designation
6. Marking for Identification

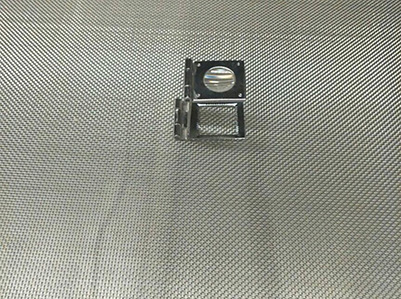

UNS S32750 Super Duplex Stainless Steel Wire Mesh

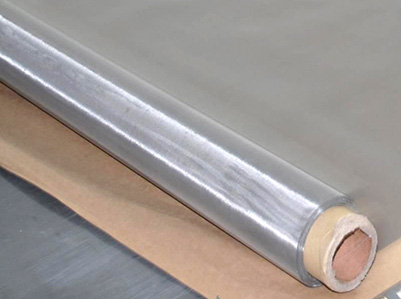

UNS S32750 Super Duplex Stainless Steel Wire Mesh Roll

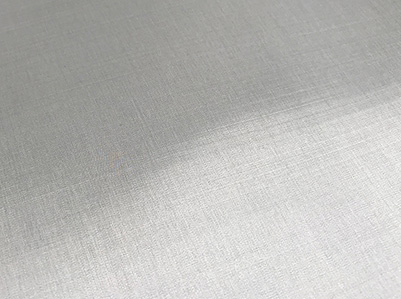

UNS S32750 Super Duplex Stainless Steel Mesh
