Home > Wire Mesh Materials > Stainless Steel Wire Mesh > Dutch Weave Stainless Steel Wire Mesh

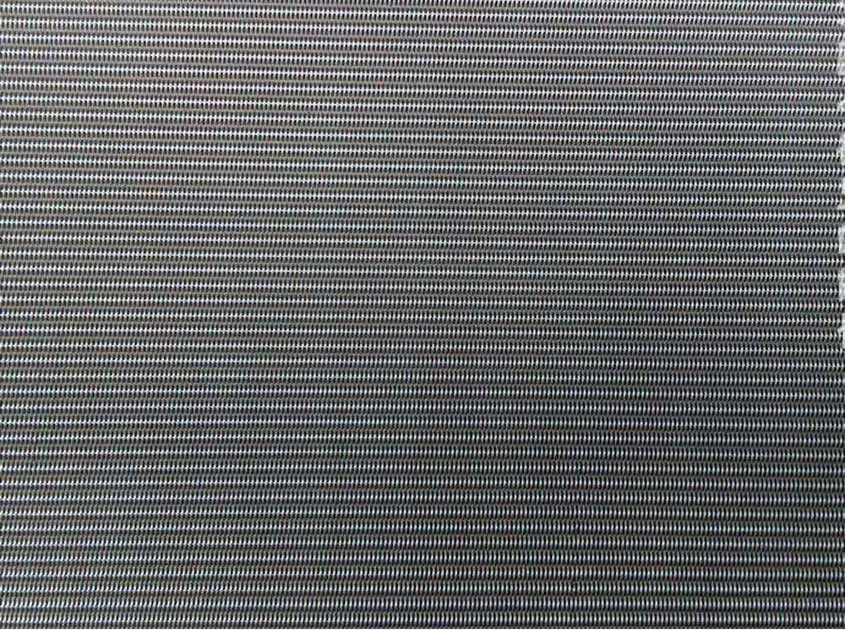

Dutch Weave Stainless Steel Wire Mesh as a type of filter screen involving a special weaving process Dutch Weave Stainless Steel Wire Mesh has different warp and weft mesh numbers. Ordinary and common Dutch Weave Stainless Steel Wire Mesh has more weft numbers than warp numbers and thicker warp steel wire than weft steel wire therefore being called Dutch Weave Mesh. Dutch Weave Stainless Steel Wire Mesh has a filter precision that ordinary stainless square-hole mesh cannot have and reach. Dutch Weave Stainless Steel Wire Mesh is also called Dutch Cloth Dense Mesh and Hole-less Mesh. Its weft wires are based on the close arrangement of steel wires generally used in precision screening and oil filtering. Dutch Weave Stainless Steel Wire Mesh with a large mesh number can filter oil only in a pressure environment.

Dutch Weave Stainless Steel Wire Mesh is great contrast to the density of wire diameter in warp and weft direction so the mesh thickness filter rating and service life has obvious enhancement compared to square hole mesh.
Application of Dutch Weave Stainless Steel Wire Mesh
Dutch weave stainless steel wire mesh is mainly used for gas liquid filtration and other medium’s separation. Widely used in precision pressure filter fuel filter vacuum filter. Can be filter material and applied to aerospace petroleum chemical chemical fiber rubber tire manufacturing metallurgy medicine food scientific researchscreening gravel in building constructionheat sink devicetextile machineryhighly processed products conveying and many other industries.

  • Features of Dutch Weave Stainless Steel Wire Mesh

    • 1. Excellent resistance to the rust and corrosion.
    • 2. Resistance to the acid and alkali.
    • 3. Resistance to the chemical and harsh weather.
    • 4. High strength
    • 5. Better filtering performance.
    • 6. Higher tensile strength.
    • 7. Can be used for filtering ultra-fine products.
    • 8. Much more stable structure.

  • Technical Details

    • Material: SUS 302304316316L 431 321 310S 904L 410/430 etc.
    • Common Width: 0.9m 1.0m 1.22m 1.5m special requirement can be customized.
    • Common Length:10m25m30mspecial requirement can be customized.
    • Property: Acid-resisting alkali-resisting high temperature resisting strong tension and good abrasion performance. Dutch weave wire mesh has advantage of stable fine and high precision filtering performance.

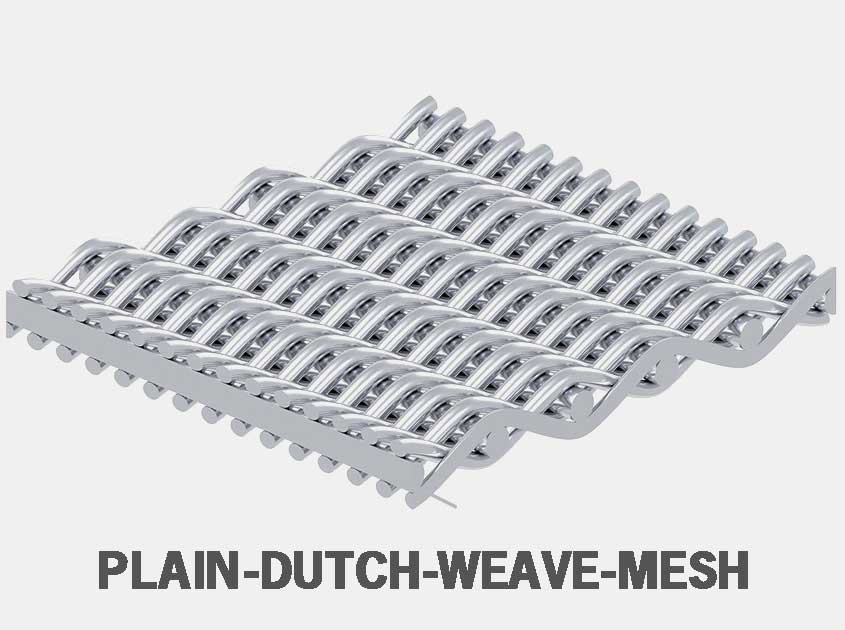

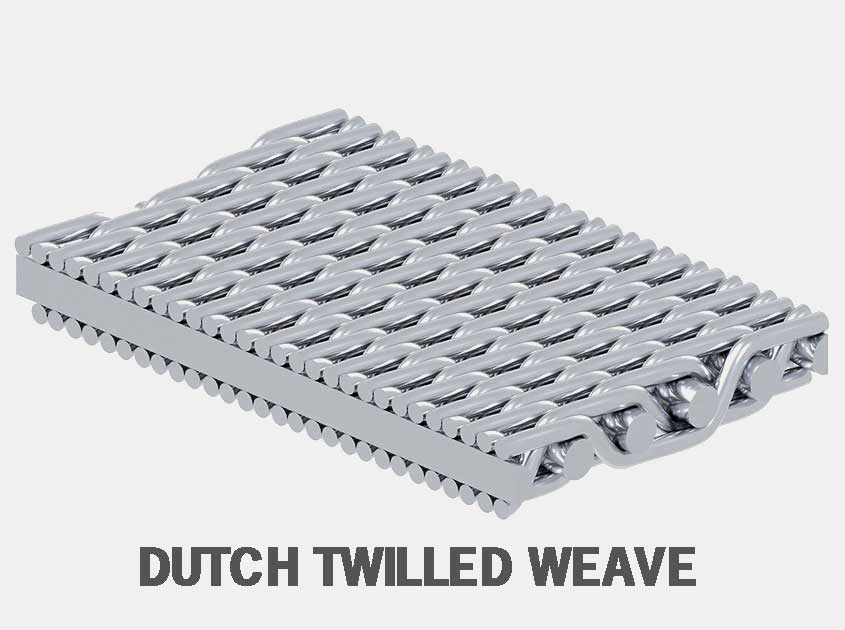

    • Weave Pattern:  Plain-Dutch Twill-Dutch.
Mesh Wire Diameter (Inch) Absolute Filtration Fineness (µm) Nominal Filtration Fineness (µm)
8X85 .014X.0126 318 – 340 250 – 255
12X64 .024X.0165 270 – 285 200 – 205
14X88 .020X.013 225 – 245 150 – 155
20X150 .0098X.007 155 – 165 100 – 105
24X100 .015X.010 115 – 125 80 – 85
30X150 .009X.007 95 – 100 65 – 70
40X200 .007X.0055 65 – 70 55 – 60
50X250 .0055X.0045 55 – 60 40 – 45
80X400 .0049X.0028 43 – 48 35 – 40

 Mesh Wire Dia. (Inch) Absolute Filtration Fineness (µm) Nominal Filtration Fineness (µm)
20 x 250 .0098 x .0079 110-120 98-105
30 x 360 .0098 x .0060 90-100 80-84
40 x 560 .0070 x .0040 70-75 47-52
120 x 400 .0040 x .0025 50-55 37-43
120 x 160 .0040 x .0025 40-45 28-32
80 x 700 .0040 x .0030 35-40 24-26
200 x 600 .0024 x .0018 28-32 19-21
165 x 800 .0028 x .0020 24-26 14-16
165 x 1400 .0028 x .0016 16-18 9-11
200 x 1400 .0028 x .0016 12-14 5-6
250 x 1400 .0022 x .0016 11-12 3-4
325 x 2300 .0015 x .0010 8-9 2-3

Note: Special size and specifications can be made according to customers requires.
